Hog Heaven Impressions Logo Mat

3422-23-58

Regular price $199.00
/
Shipping calculated at checkout.

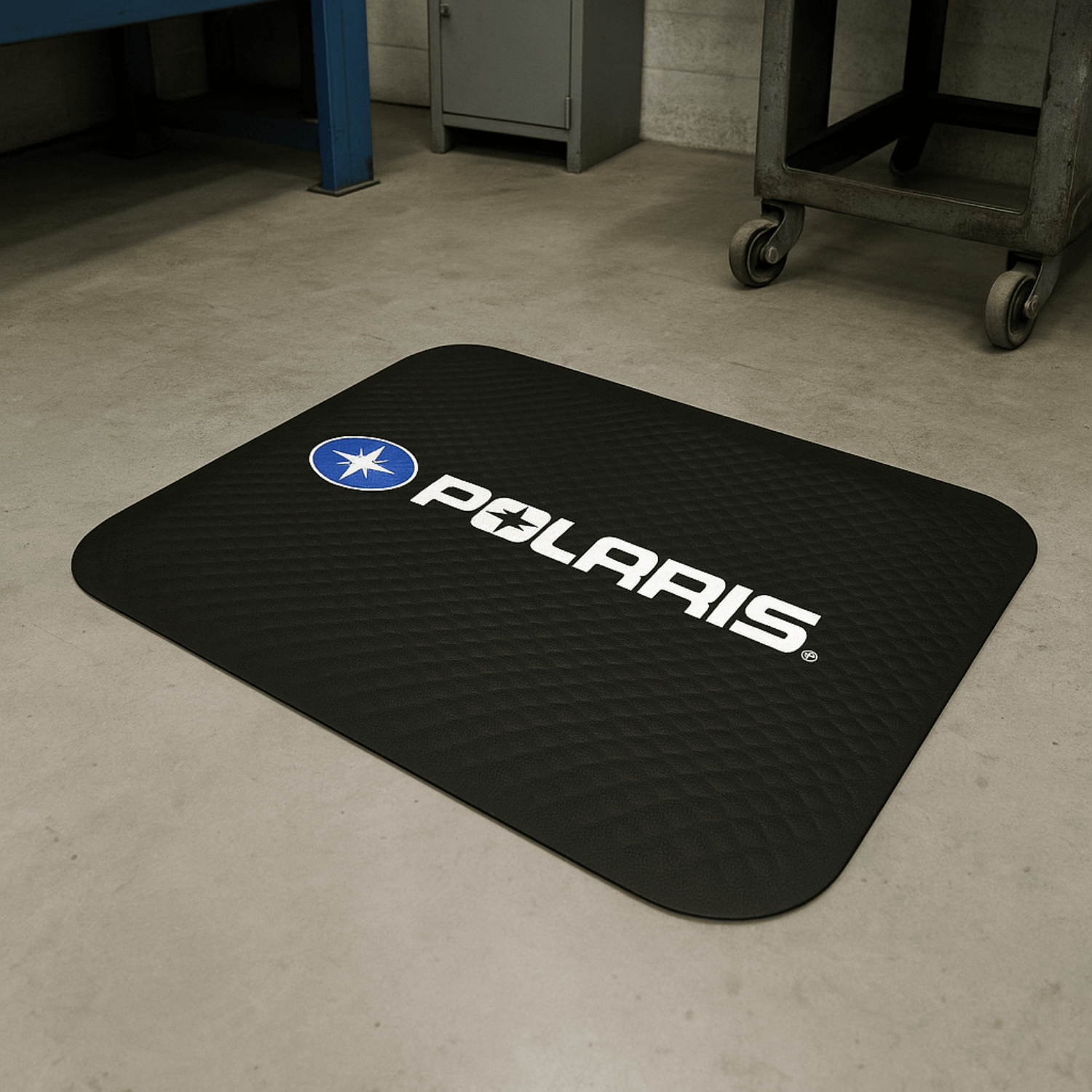

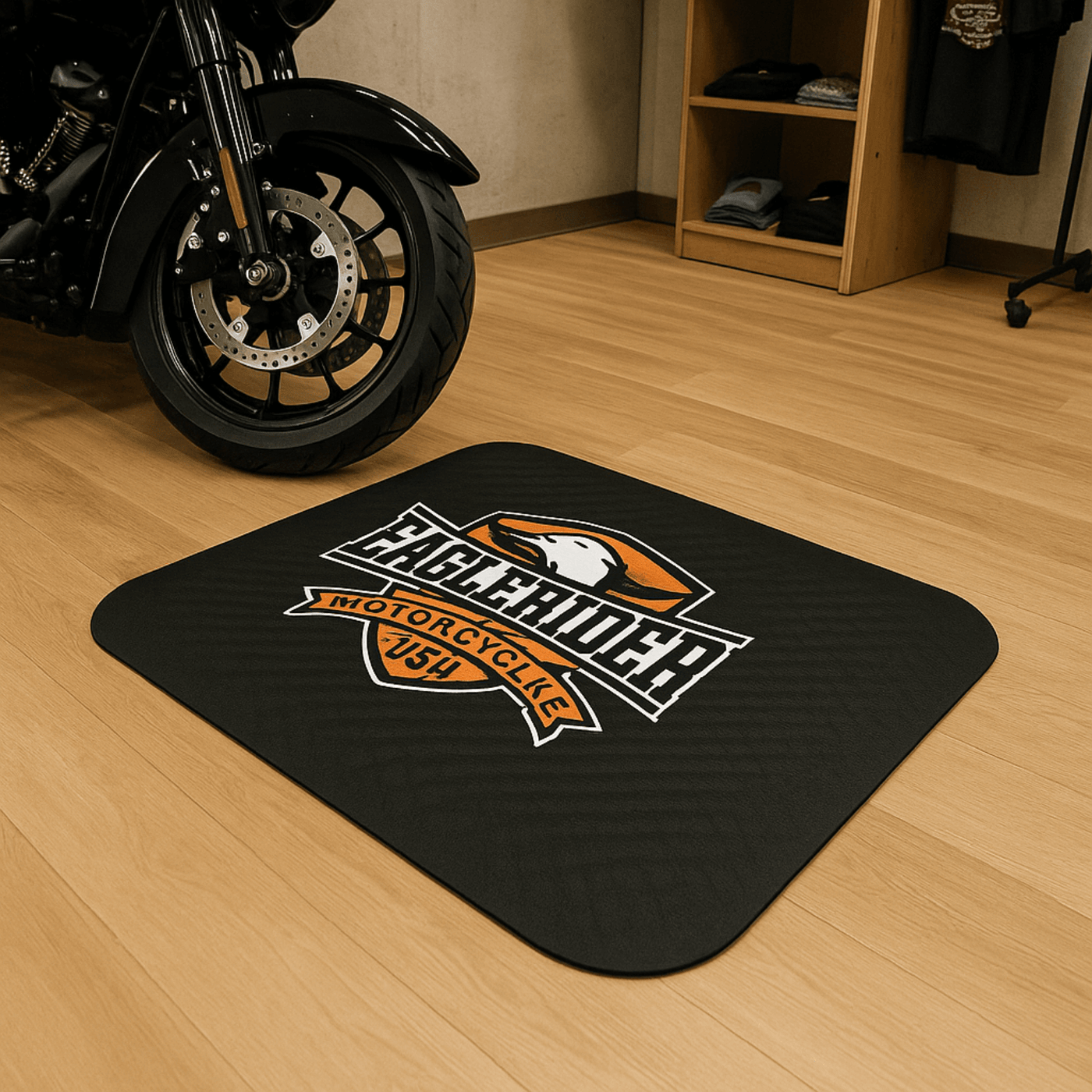

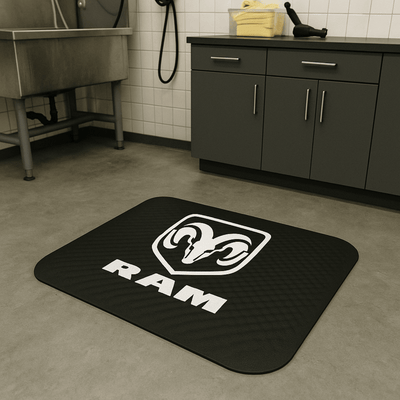

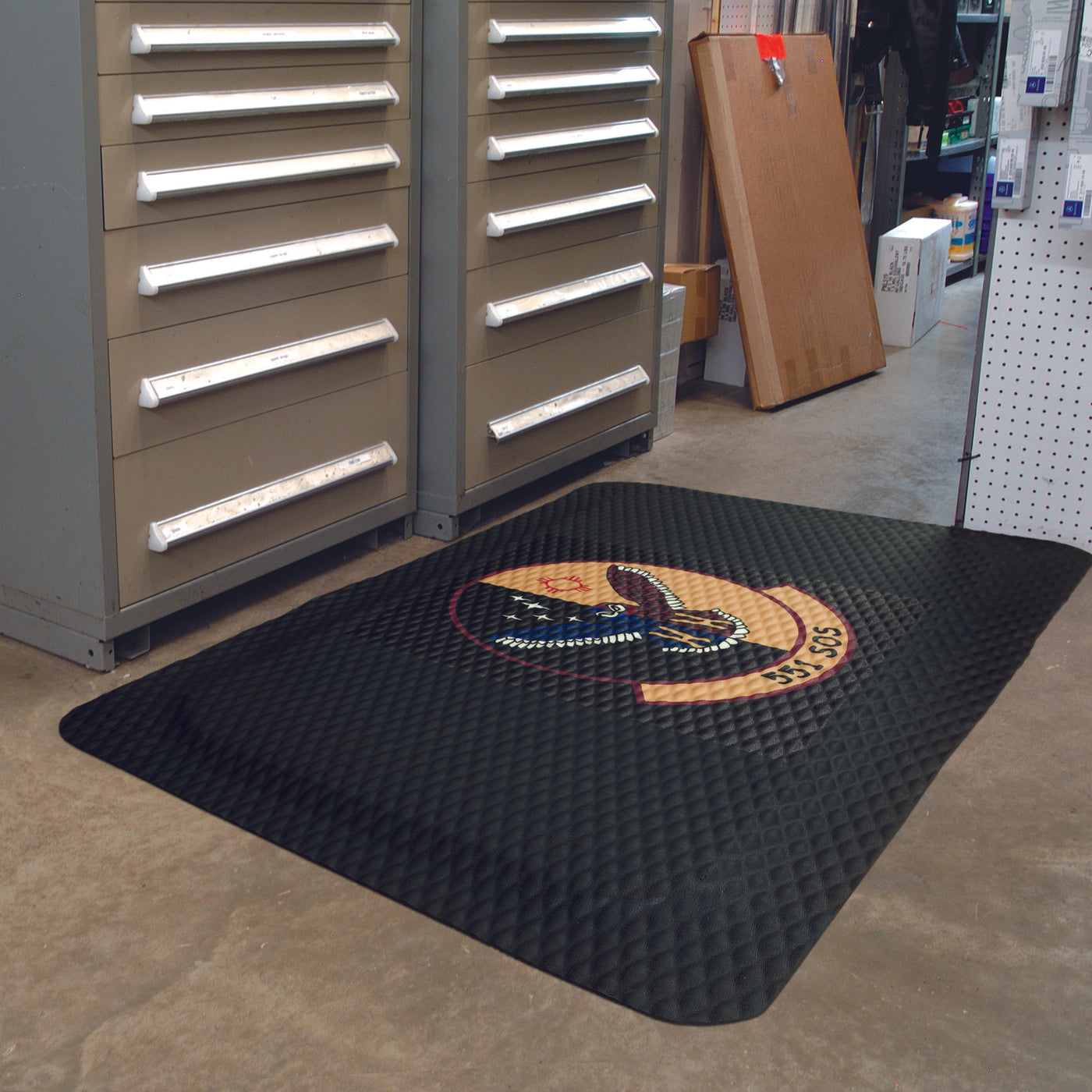

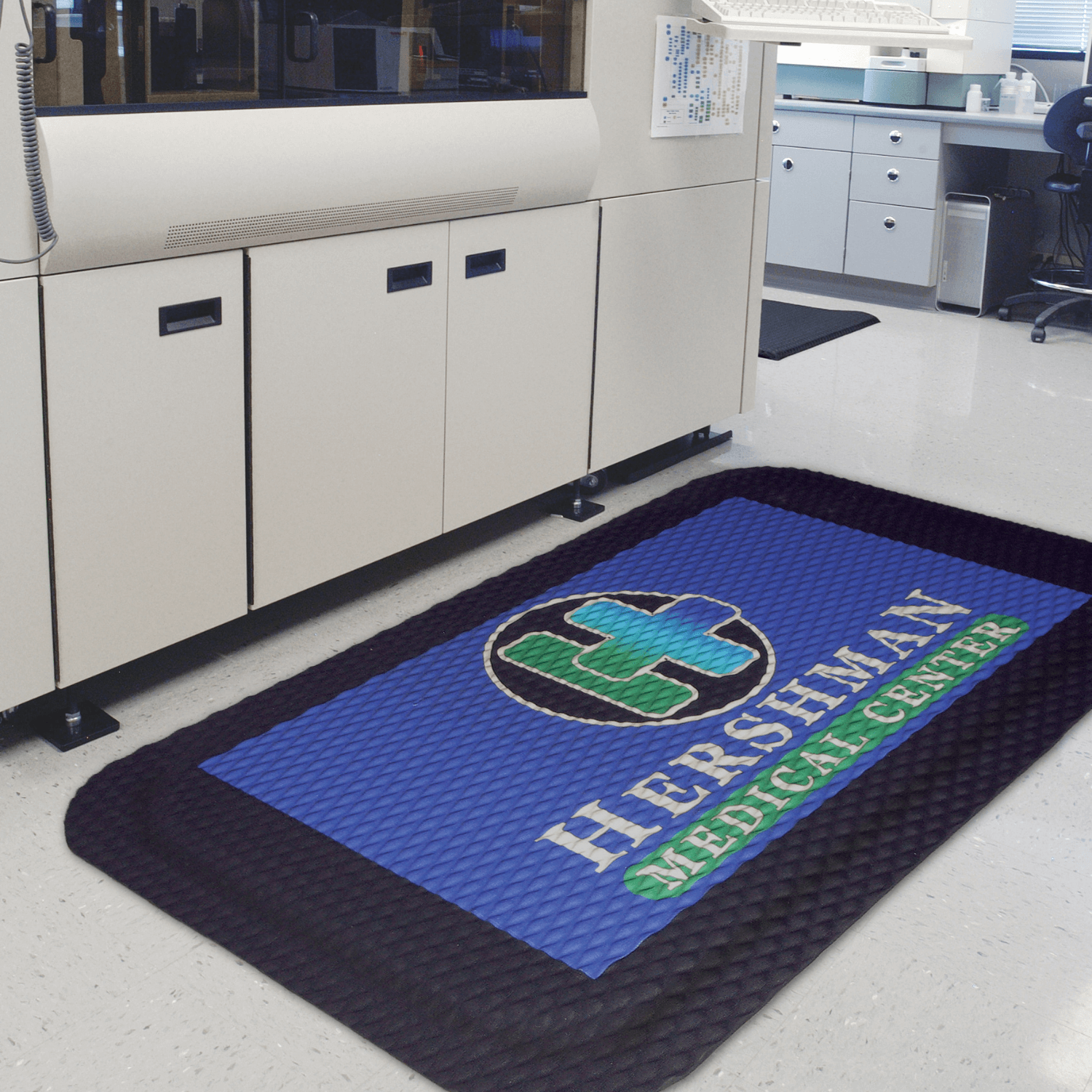

Hog Heaven Impressions mats feature the same excellent anti-fatigue qualities of a standard Hog Heaven mat but can be customized with your logo or message.

Recommended for indoor use in commercial and industrial settings where branding or messaging is required/preferred along with the anti-fatigue benefits of a Hog Heaven mat. Excellent for customization with a company logo, slogan, or safety and quality reminders.

  • Comfortable - 5/8" high-density nitrile-blended cushion helps eliminate pressure to the lower back and legs, providing superior comfort
  • Safe - Certified high-traction by the National Floor Safety Institute (NFSI); edges will not crack or curl and provide a safe transition from floor to mat
  • Durable - Nitrile-blended cushion provides years of useful service life; cushion is molded, not glued, to the nitrile rubber surface so it will not separate
  • Versatile - Nitrile rubber surface is welding safe, grease/oil proof, and chemical resistant*

2' x 3' (23" x 32")
3' x 5' (32" x 58")
4' x 6' (46" x 70")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: Nitrile rubber
Logo/Image Material: Polymetric film

CUSHION
Material: High-density, closed-cell nitrile/PVC-blended foam

OVERALL MAT THICKNESS: 5/8 inch (0.6250" )

STANDARDS & TESTING

  • Durometer: 56
  • Compression Deflection:
         47.8% at 20 psi
         66.0% at 40 psi
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.79
         Wet 0.75
  • Passes flammability standard DOC-FF1-70
  • Melt point over 500 degrees F. Tested at temperatures up to 1800 degrees F for welding/slag resistance (specific results from test available upon request)


Artwork Guidelines:Acceptable file formats include: ai, psd, gif, tif, png, eps, jpg. We recommend at least 200 dpi for best results.

A digital print on polymetric film allows customers to customize the Hog Heaven anti-fatigue mat with logos, images, and messages. Please refer to this product's Price List for details on the one-time PMS color matching set-up fee. A maximum of 4 PMS colors may be matched per design.

Mat Size Maximum Imprint Area
2' x 3' (24" x 32")
12" x 22"
3' x 5' (32" x 58")
24" x 44"
4' x 6' (46" x 70")
36" x 50"


Minimum Text Height: 1.5"
Minimum Line Thickness: 1/4"

These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

We are committed to delivering the best possible match to your PMS color, but it's important to recognize the inherent challenges of color matching. While our efforts yield a close approximation, achieving an exact color match isn't a precise science, leading to expected variations. Factors like the use of a hot press in the rubber surface and cushion backing process, which can cause color lightening due to heat, play a role. In most cases, we come remarkably close to replicating PMS colors, but there might be slight variations in the final result.



Hog Heaven mats can be cleaned by scrubbing with a deck brush (when needed), using detergent with a neutral pH, and rinsing with a hose or pressure washer.  Mats should be laid flat or hung to dry.
