Coco Drag Mat (Replacement Mat only)
VB1T-NA-CC
Confirm your age
Are you 18 years old or older?
Come back when you're older
Sorry, the content of this store can't be seen by a younger audience. Come back when you're older.
- Description
- Specifications
- Applications
- Installation
Description

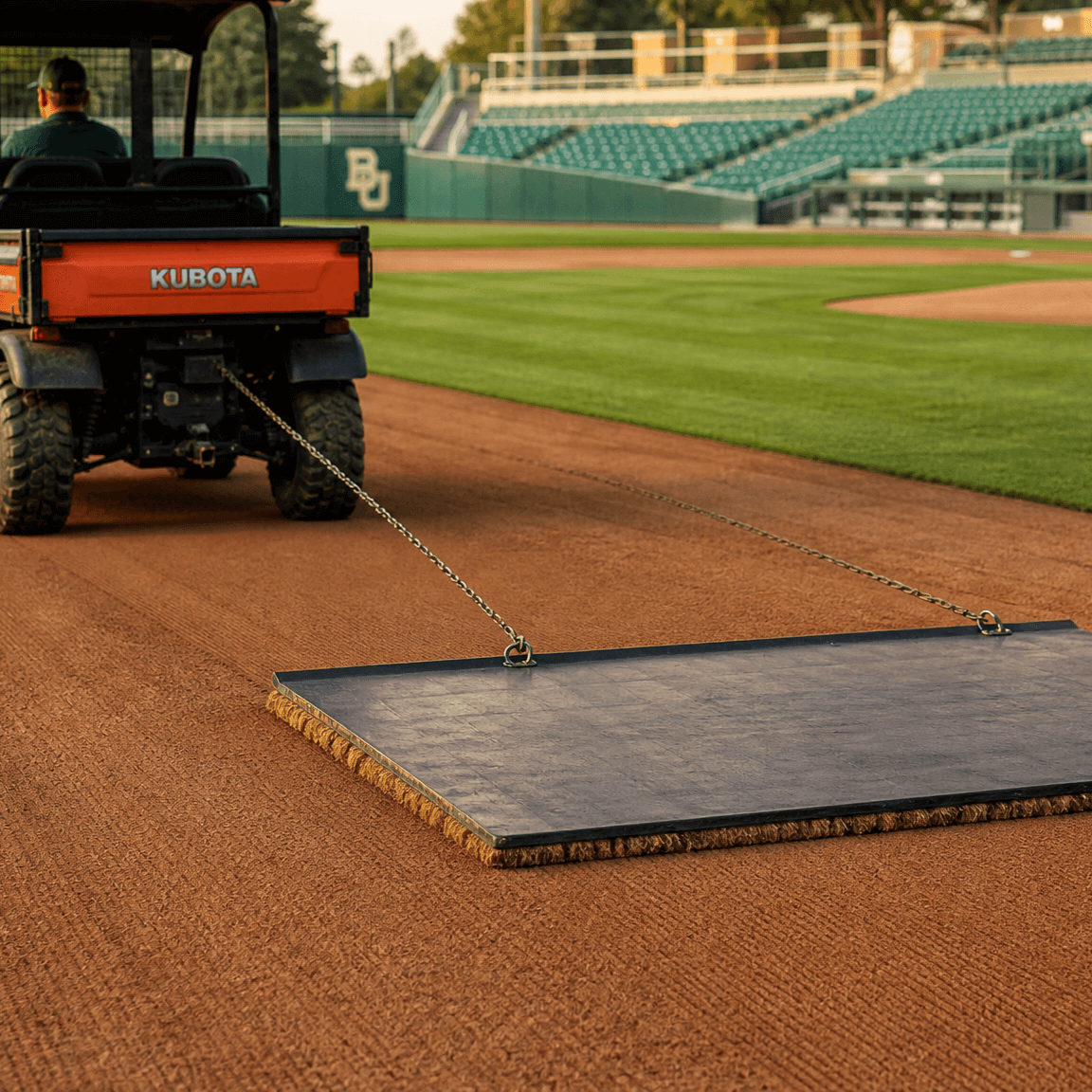

Give your baseball infields, softballs diamonds, or heavy-traffic entry wells a premium, high-performance upgrade with the Coco Drag Mat (Replacement Mat only). Engineered as an eco-friendly and natural alternative, these mats provide a rich aesthetic and professional-grade leveling and scraping power. Whether you are replacing a worn-out mat for your field drag equipment or updating a high-end commercial recessed well, this replacement insert delivers the perfect balance of organic durability and structural strength.
Coir fiber is a proven scraper and dirt-wiper. On the field, it smooths out topdressing, breaks up core aeration plugs, and levels dirt effortlessly. At the door, it brushes away mud, clay, and outdoor debris from shoes to keep indoor floors clean and safe. Additionally, coco fiber is one of the most absorbent natural fibers available, making it highly effective at managing moisture.
Premium Thickness Options
This replacement mat is available in two robust, heavy-duty profiles to suit your specific drag or recessed well depth:
-
1" Thickness: Streamlined yet highly effective for precision grooming and standard wells.
-
1 1/4" Thickness: Maximum density and weight, combining a thick coconut husk pile with a rugged PVC vinyl backing for ultimate durability.
Made from authentic natural coco fibers and thus can vary in terms of the color. Depending on the batches of coconut husk fibers used, some mats can appear lighter than others. This organic variation boast each mat's individuality due to the unique nature of coconut.
Specifications
|
Product Type |
Replacement Mat Only |
|
Pile material |
100% machine-spun coconut fibre yarns |
| Backing | PVC with integrated stability scrim |
| Primary backing | - |
| Yarn construction | Velour |
| Pattern | Uniform |
| Pile weight ISO 8543 | 13 mm ± 2.35 kg m² 17 mm: ± 2.65 kg m² 20 mm: ± 3.15 kg m² 23 mm: ± 3.60 kg m² 28 mm: ± 4.35 kg m² |
| Total weight ISO 8543 | 13 mm ± 5.35 kg m² 17 mm: ± 5.65 kg m² 20 mm: ± 6.15 kg m² 23 mm: ± 6.60 kg m² 28 mm: ± 7.65 kg m² |
| Pile height ISO 1766 | Natural: 10, 14, 17, 20 and 25 mm |
| Total height ISO 1765 | Natural: 13, 17, 20, 23 and 28 mm |
| Pile density ISO 8543 | NPD |
| Number of stitches ISO 1763 | ± 38,000 /m² |
| Use classification EN 1307 | Natural: 31, Colour/Design: NPD |
| Wearing class EN 1963 | 32 |
| Comfort EN 1307 | LC5 |
| Suitabililty for stairs EN 1963 | NPD |
|
Suitability for castor chairs EN 985 |
NPD |
| Dimensional stability ISO 2551 | NPD |
| Light fastness ISO 105 B02 | >6 |
| Water fastness ISO 105 B01 | 3-4 |
| Rubbing fastness ISO 105 X12 | 3-4 |
| Salt water ISO 105 E02 | 3-4 |
| Shampoo BS 1006 | 3-4 |
| Organic solvents ISO 105 X05 | 3-4 |
| Absorption capacity TNO W6034 | 17 mm ± 7.1 l/m² |
| Flammability Euroclass EN13501 | Efl |
| Slip resistance EN13893 | DS |
| Static charge ISO 6356 | 2,0 kV |
| Declaration of Performance | Available |
| Sizes rolls | 100 & 200 cm |
| Roll length | ± 12.5 m - 28 mm ± 10 m |
Applications
While universally loved as a field drag replacement, this mat is also ideal for flush-to-floor installation in recessed wells or above-ground applications in covered areas. It is perfect for:
-
Infield drag equipment maintenance
-
Apartment buildings & high-end entrances
-
Hotel lobbies & storefronts
-
Corporate offices
Note: Recommended for indoor or fully covered outdoor areas.
